Description

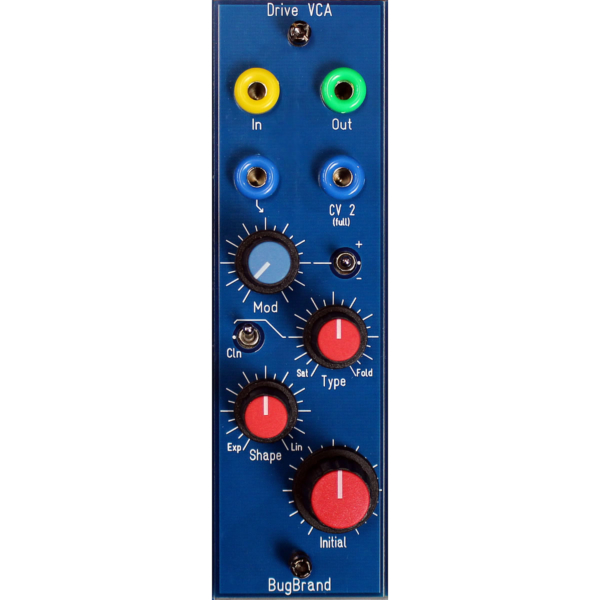

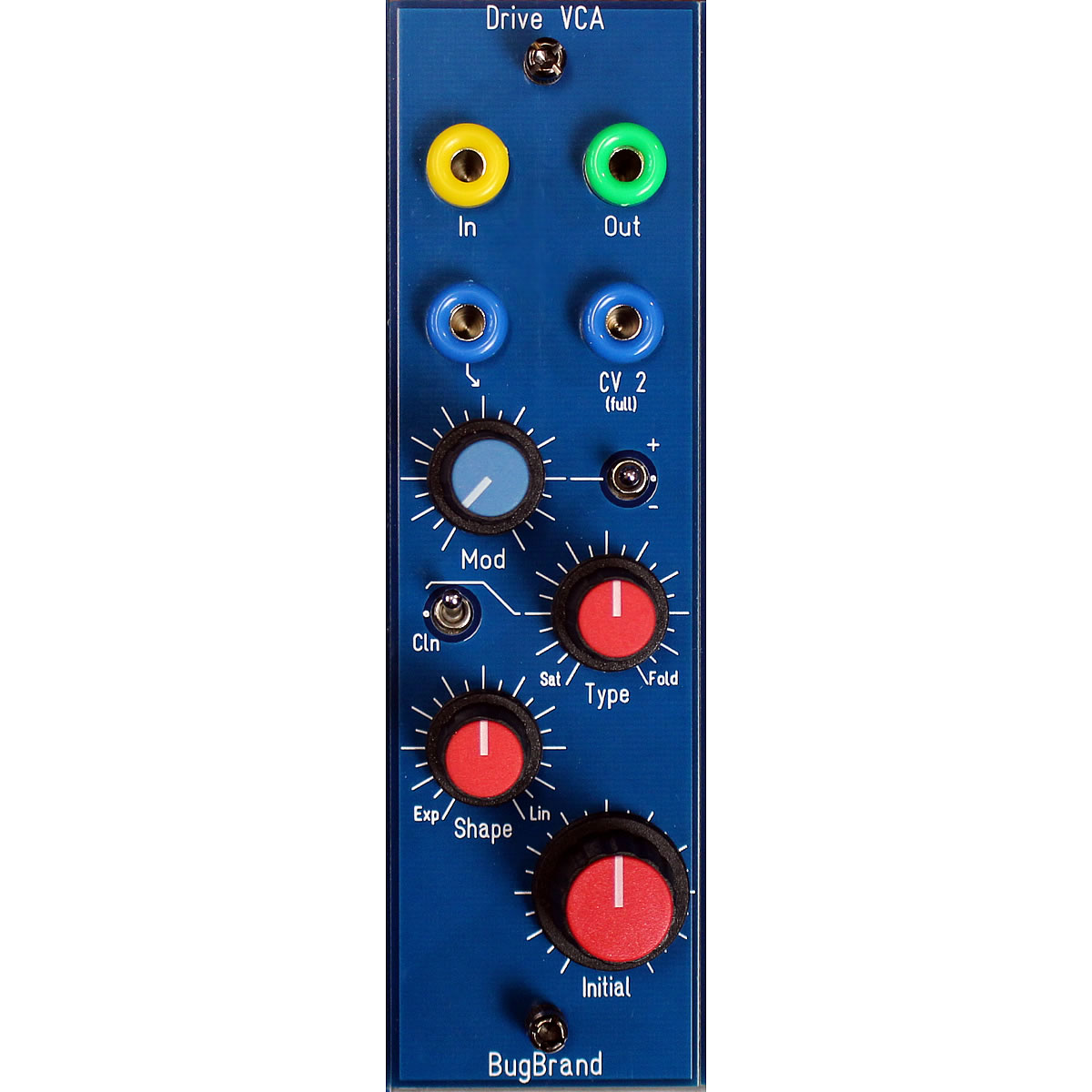

The Drive VCA combines most of the features of the Dual Amplifier module into a single space.
It can either be run in Clean (Cln) mode as a regular VCA or switched to a sweepable mix between Zener-Diode Saturation or harmonic Wave-Folding via the Type control.
Control level is a sum of the Initial (Manual) control combined with the two CV inputs – one has a depth control with polarity & mute switch, while the 2nd is full-range unattenuated.
The response can be swept from Exponential to Linear, altering how the VCA responds to control signals.
The VCA is DC-coupled with gain up to unity.
Size: 1FW
Current: +ve 45mA, -ve 35mA
