Description

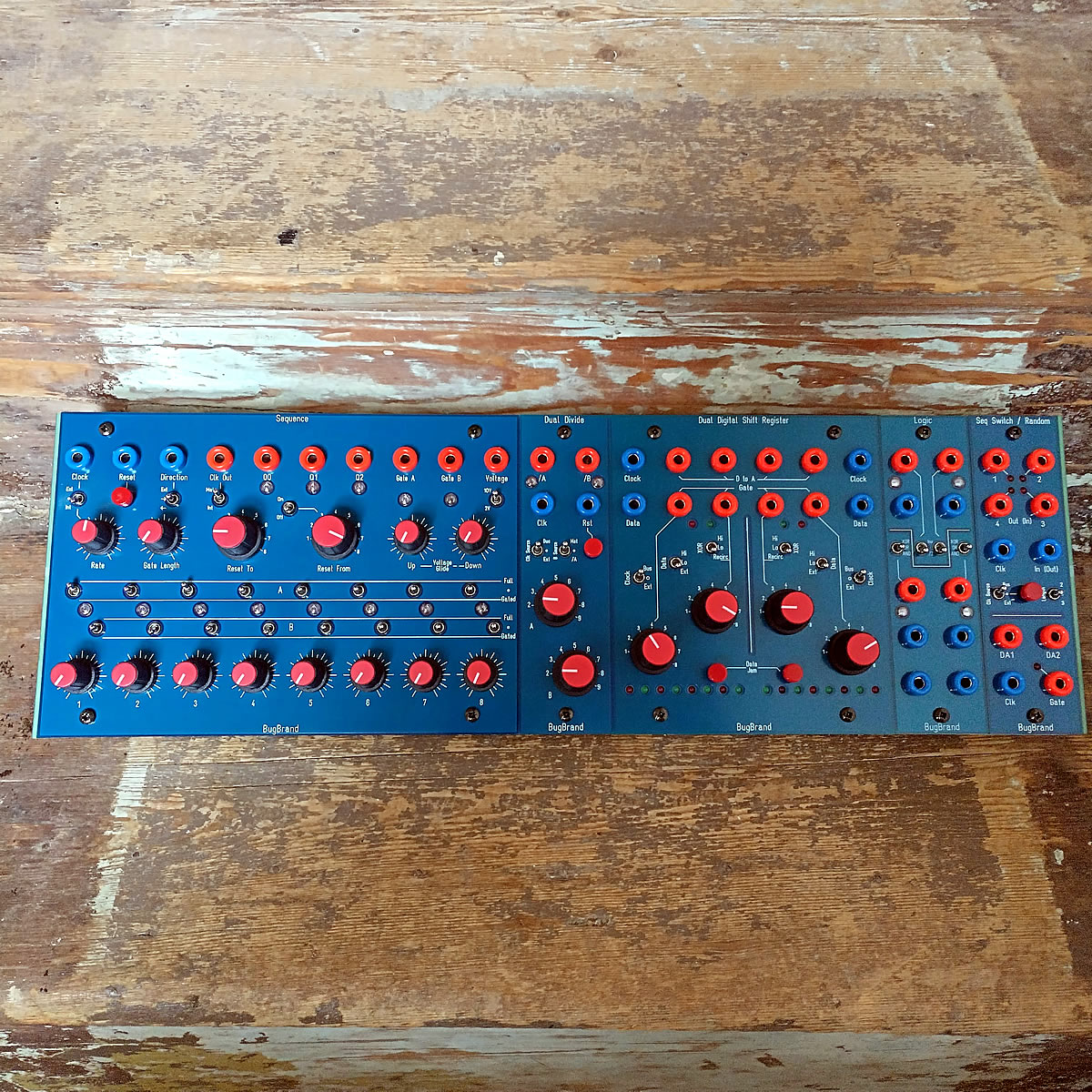

Here’s a suggested system of sequencing/clocking modules which will make things dance.
Set up with the Internal Clocking Bus – Main Clock, Gate A, Gate B as follows:

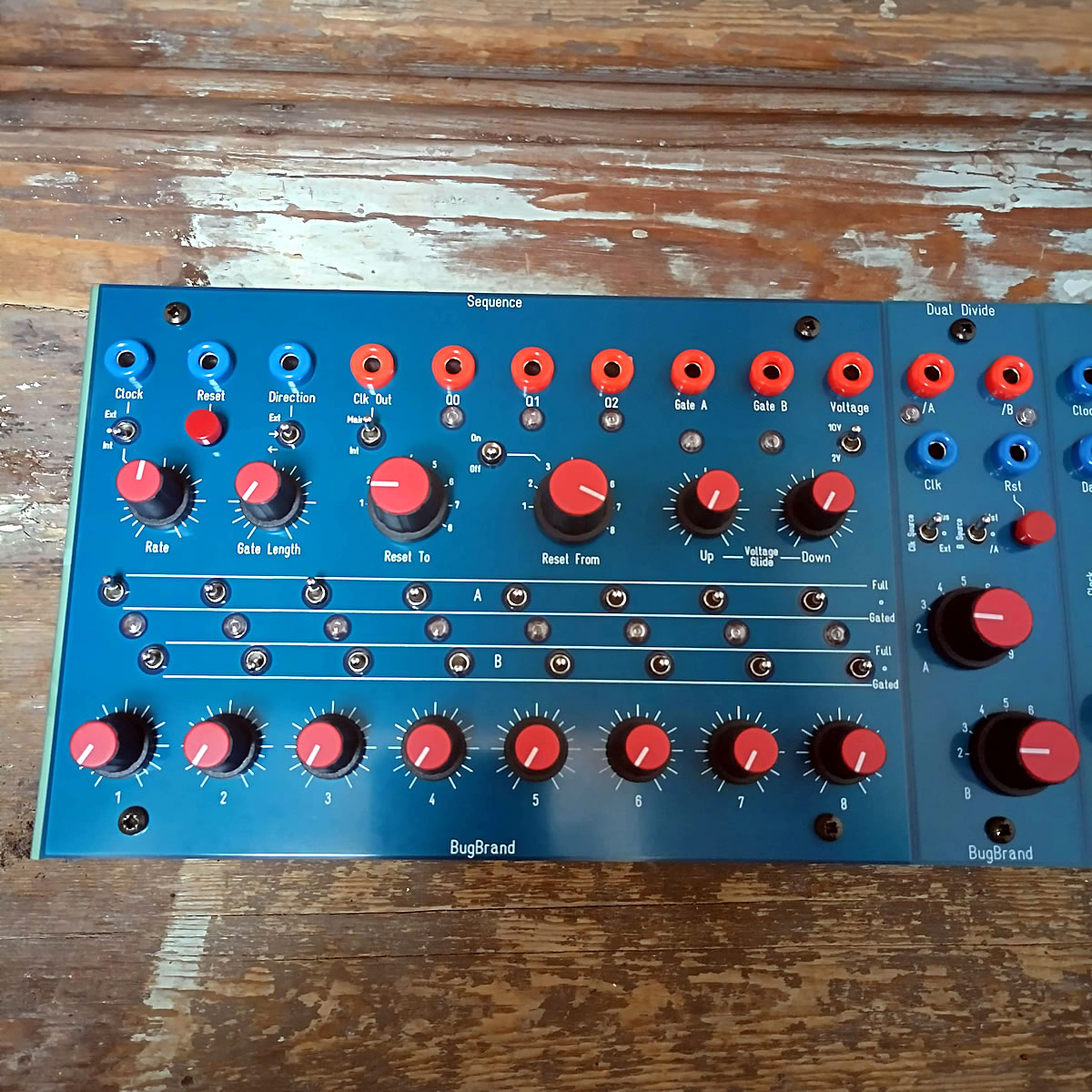

- Sequence – provides Clock, Gate A/B

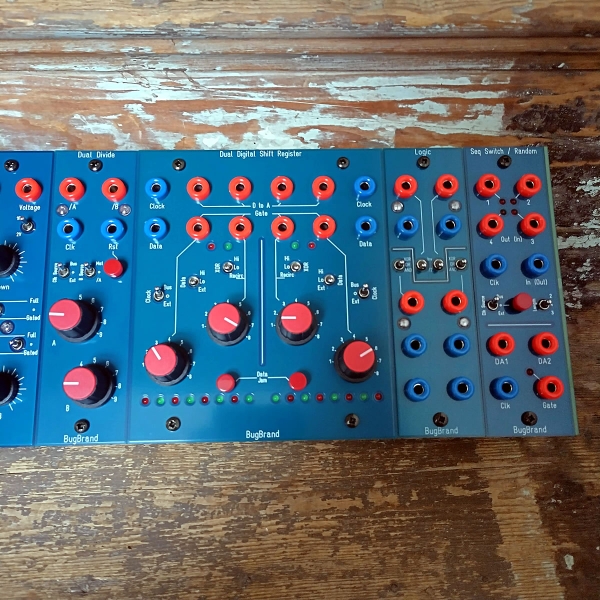

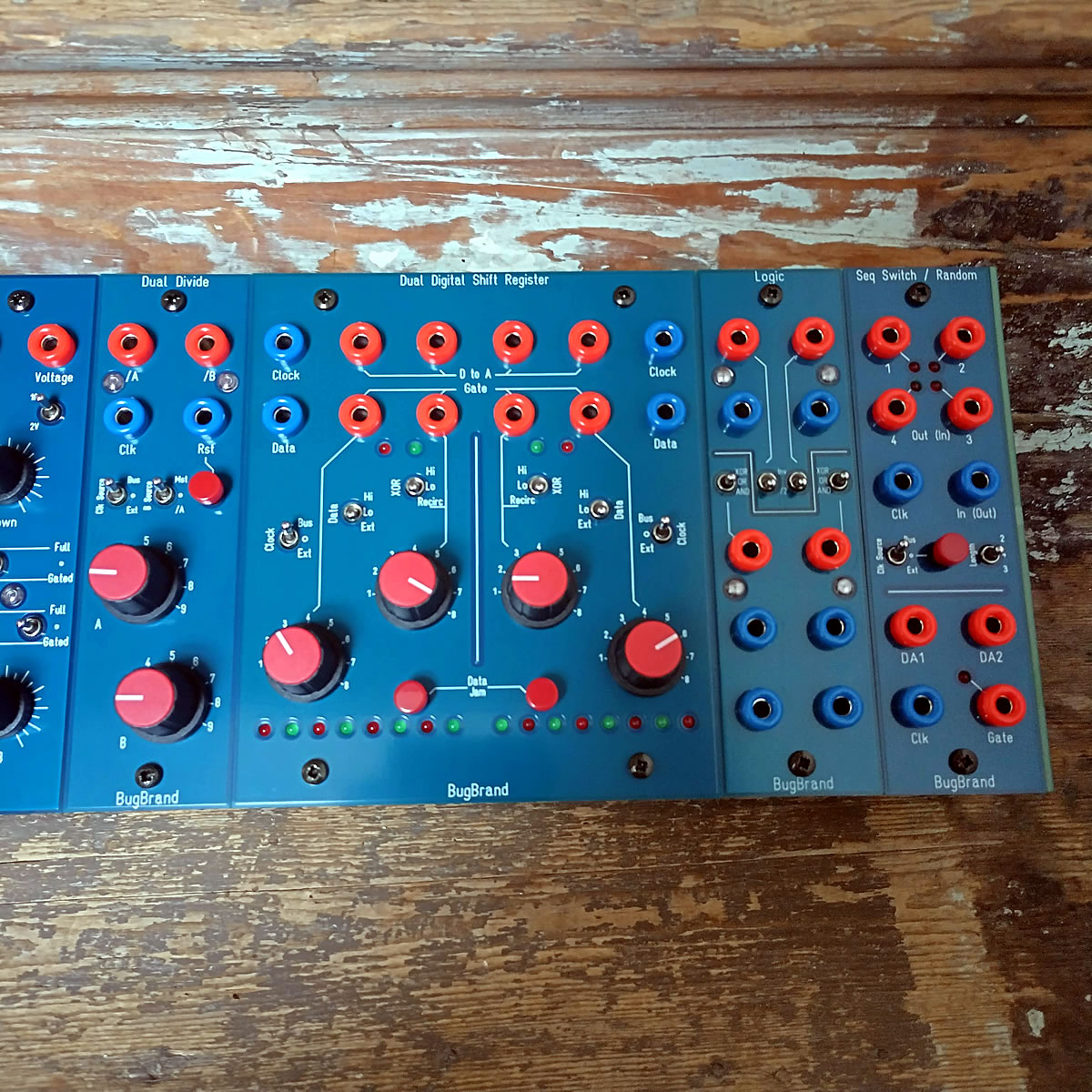

- Dual Divide – bus from Main Clock
- Dual Digital Shift Register – leftside from Main Clock, rightside from Gate A
- Logic
- Sequential Switch / Random – bus from Gate B
